rustworkx.generators.directed_mesh_graph#

directed_mesh_graph(num_nodes=None, weights=None, multigraph=True)#

Generate a directed mesh (complete) graph where every node is connected to every other.

Parameters:

  • num_nodes (int) – The number of nodes to generate the graph with. Node weights will be None if this is specified. If both num_nodes and weights are set, this will be ignored and weights will be used.

  • weights (Sequence[Any]) – A sequence of node weights, typically a list. If both num_nodes and weights are set, this will be ignored and weights will be used.

  • multigraph (bool) – When set to False the output PyDiGraph object will not be not be a multigraph and won’t allow parallel edges to be added. Instead calls which would create a parallel edge will update the existing edge.

Returns:

The generated mesh graph

Return type:

PyDiGraph

Raises:

IndexError – If neither num_nodes or weights are specified

import rustworkx.generators
from rustworkx.visualization import mpl_draw

graph = rustworkx.generators.directed_mesh_graph(4)
mpl_draw(graph)

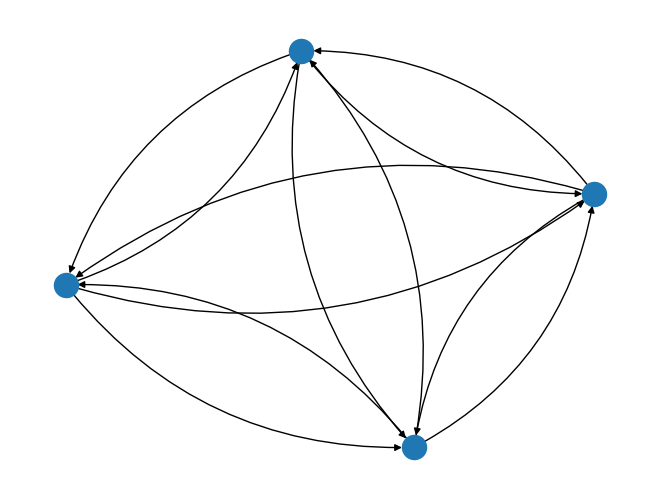

../_images/rustworkx.generators.directed_mesh_graph_0_0.png
