rustworkx.generators.grid_graph

grid_graph(rows=None, cols=None, weights=None, multigraph=True)

Generate an undirected grid graph.

Parameters:

• rows (int) – The number of rows to generate the graph with. If specified, cols also need to be specified

• cols (int) – The number of cols to generate the graph with. If specified, rows also need to be specified. rows * cols defines the number of nodes in the graph

• weights (Sequence[Any]) – A sequence of node weights, typically a list. Nodes are filled row wise. If rows and cols are not specified, then a linear graph containing all the values in weights list is created. If number of nodes (rows * cols) is less than length of weights list, the trailing weights are ignored. If number of nodes (rows * cols) is greater than length of weights list, extra nodes with None weight are appended.

• multigraph (bool) – When set to False, the output PyGraph object will not be not be a multigraph and won’t allow parallel edges to be added. Instead calls which would create a parallel edge will update the existing edge.

Returns:

The generated grid graph

Return type:

PyGraph

Raises:

IndexError – If neither rows or cols and weights are specified

import rustworkx.generators
from rustworkx.visualization import mpl_draw

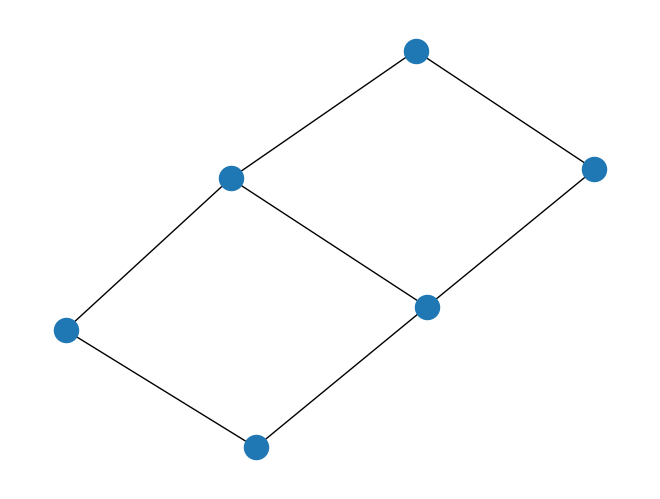

graph = rustworkx.generators.grid_graph(2, 3)
mpl_draw(graph)
