rustworkx.generators.heavy_hex_graph

heavy_hex_graph(d, /, multigraph=True)

Generate an undirected heavy hex graph. Fig. 2 of https://arxiv.org/abs/1907.09528 An ASCII diagram of the graph is given by:

... D-S-D   D ...
    |   |   |
...-F   F-S-F ...
    |   |   |
... D   D   D ...
    |   |   |
... F-S-F   F-...
    |   |   |
    .........
    |   |   |
... D   D   D ...
    |   |   |
...-F   F-S-F ...
    |   |   |
... D   D   D ...
    |   |   |
... F-S-F   F-...
    |   |   |
    .........
    |   |   |
... D   D   D ...
    |   |   |
...-F   F-S-F ...
    |   |   |
... D   D   D ...
    |   |   |
... F-S-F   F-...
    |   |   |
... D   D-S-D ...

Parameters:

• d (int) – distance of the code. If d is set to 1 a PyGraph with a single node will be returned.

• multigraph (bool) – When set to False the output PyGraph object will not be not be a multigraph and won’t allow parallel edges to be added. Instead calls which would create a parallel edge will update the existing edge.

Returns:

The generated heavy hex graph

Return type:

PyGraph

Raises:

IndexError – If d is even.

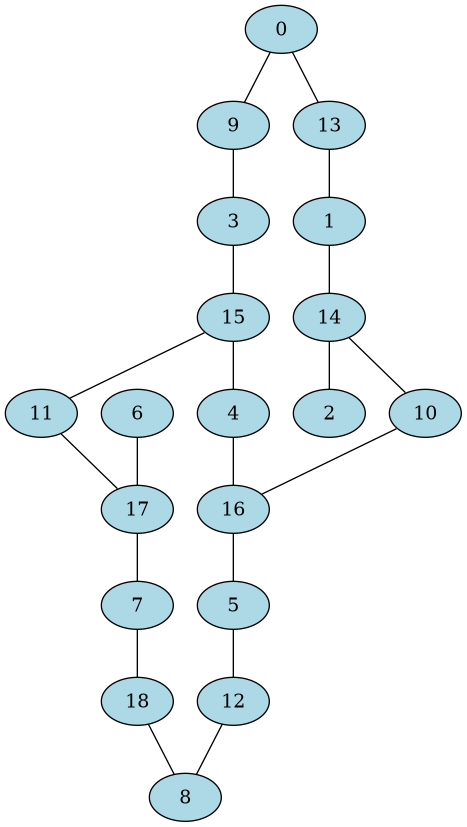

import rustworkx.generators
from rustworkx.visualization import graphviz_draw

graph = rustworkx.generators.heavy_hex_graph(3)
graphviz_draw(graph, lambda node: dict(
        color='black', fillcolor='lightblue', style='filled'))
