rustworkx.generators.full_rary_tree¶

full_rary_tree(branching_factor, num_nodes, /, weights=None, multigraph=True)¶

Creates a full r-ary tree of n nodes. Sometimes called a k-ary, n-ary, or m-ary tree.

Parameters:

order (int) – Order of the tree.
weights (list) – A list of node weights. If the number of weights is less than n, extra nodes with with None will be appended.
multigraph (bool) – When set to False the output PyGraph object will not be not be a multigraph and won’t allow parallel edges to be added. Instead calls which would create a parallel edge will update the existing edge.

Returns:

A r-ary tree.

Return type:

PyGraph

Raises:

IndexError – If the lenght of weights is greater that n

import rustworkx.generators
from rustworkx.visualization import mpl_draw

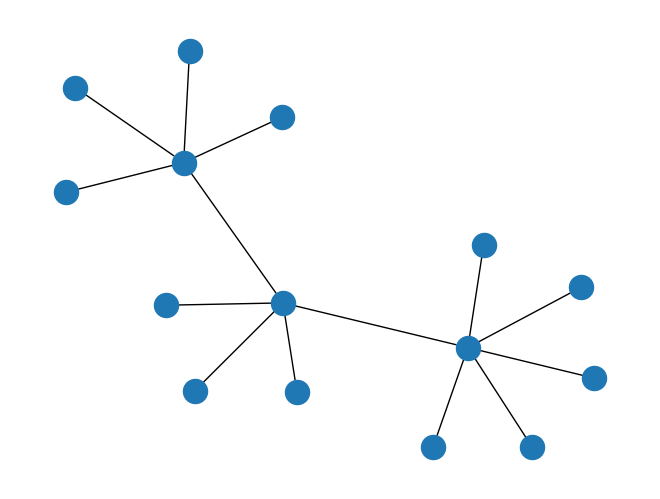

graph = rustworkx.generators.full_rary_tree(5, 15)
mpl_draw(graph)
