rustworkx.generators.directed_mesh_graph¶

directed_mesh_graph(num_nodes=None, weights=None, multigraph=True, /)¶

Generate a directed mesh graph where every node is connected to every other

Parameters:

num_node (int) – The number of nodes to generate the graph with. Node weights will be None if this is specified. If both num_node and weights are set this will be ignored and weights will be used.
weights (list) – A list of node weights. If both num_node and weights are set this will be ignored and weights will be used.
multigraph (bool) – When set to False the output PyDiGraph object will not be not be a multigraph and won’t allow parallel edges to be added. Instead calls which would create a parallel edge will update the existing edge.

Returns:

The generated mesh graph

Return type:

PyDiGraph

Raises:

IndexError – If neither num_nodes or weights are specified

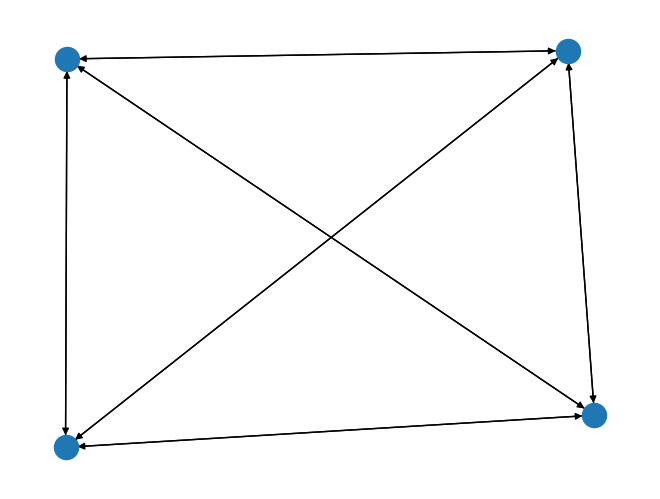

import rustworkx.generators
from rustworkx.visualization import mpl_draw

graph = rustworkx.generators.directed_mesh_graph(4)
mpl_draw(graph)
