rustworkx.generators.directed_hexagonal_lattice_graph

directed_hexagonal_lattice_graph(rows, cols, /, bidirectional=False, multigraph=True)

Generate a directed hexagonal lattice graph. The edges propagate towards

right and bottom direction if bidirectional is false

Parameters:

• rows (int) – The number of rows to generate the graph with.

• cols (int) – The number of rows to generate the graph with.

• bidirectional – A parameter to indicate if edges should exist in both directions between nodes

• multigraph (bool) – When set to False the output PyDiGraph object will not be not be a multigraph and won’t allow parallel edges to be added. Instead calls which would create a parallel edge will update the existing edge.

Returns:

The generated directed hexagonal lattice graph.

Return type:

PyDiGraph

Raises:

TypeError – If either rows or cols are not specified

import rustworkx.generators
from rustworkx.visualization import mpl_draw

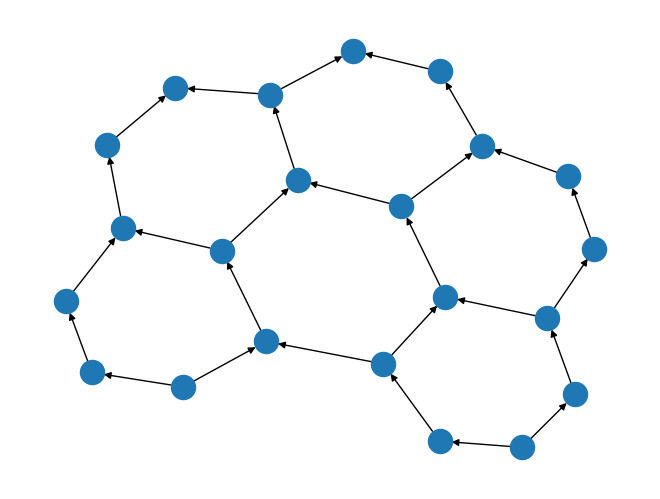

graph = rustworkx.generators.directed_hexagonal_lattice_graph(2, 3)
mpl_draw(graph)
